Traffic Lights
VR
Technical Parameters


Color

LED Q.ty

Light Intensity

Wave Length

Power Fact

Viewing Angle

Power

Working Voltage

Housing Material

Red

105pcs

≤525cd

625±5nm

>0.9

30°

≤6W

85V-265VAC or 9-36 VDC

PC,UV Resistant

Green

66pcs

≤627cd

505±5nm

≤6W

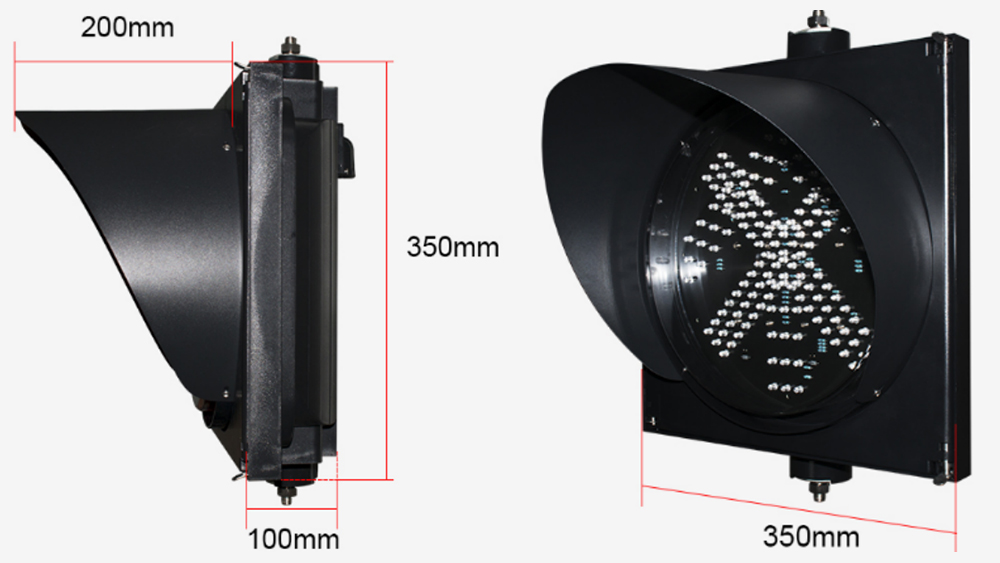

Dimension Figure

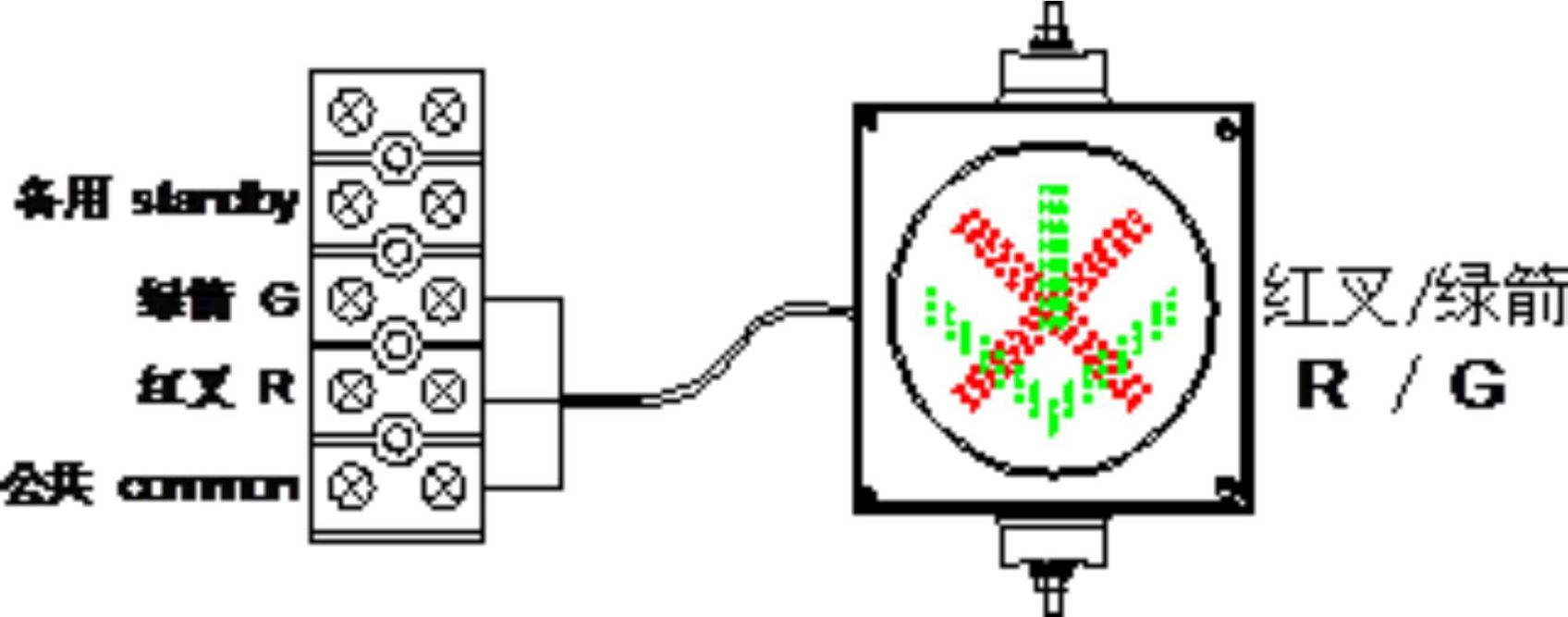

Connection Sketch



Key Features/Bullet Points

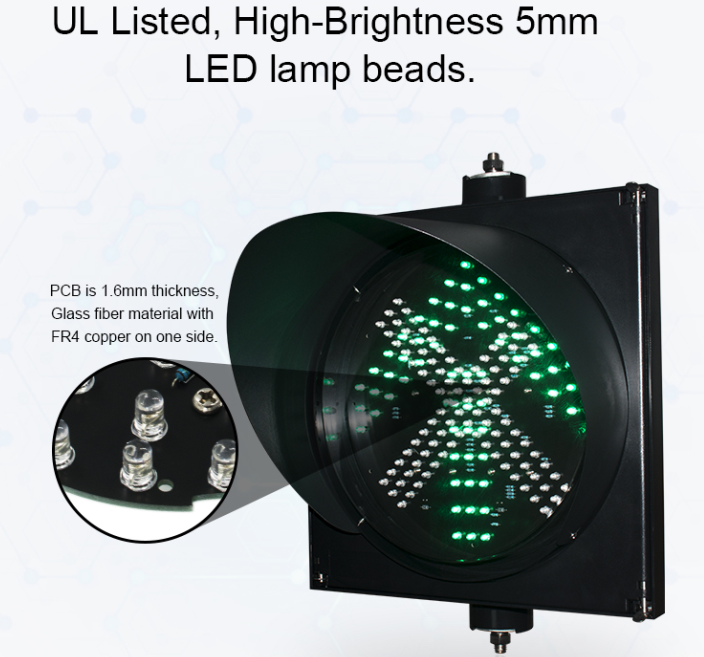

1. LED: Our LED lamp beads are UL Listed, each LED is imported from Taiwan. The LED life span up to 100000 hours. Red LED with 4000-5000mcd brightness, Green LED with 7000-9500mcd brightness. LED light-emitting diode is a light source, with stable performance and ideal display effect.



2. BLACK HOUSING & WATERPROOF: Durable black housing to ensure durability and a multilayer seal protects lens from dust and water seal to keep protected from water in harsh weather environments. The waterproof grade is IP65.

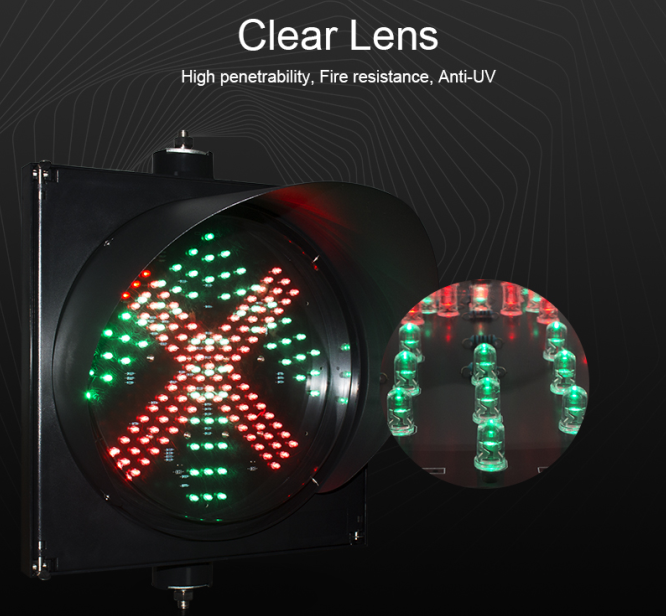

3. CLEAR LENS & MODULES:It's made of clear lens, High penetrability, Fire resistance, Anti-UV. The modules diameter about 299 mm(12 inch).



4. WORKING VOLTAGE & EASY INSTALLATION:Operating voltage of DC9-36V or 85V-265VAC; The installation can be horizontal or vertical. Red light to R terminal, Green light to G terminal, common is public line.
