Product Introduction

10 Inch Led Gas Price Sign  compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.BBMLED summarizes the defects of past products, and continuously improves them. The specifications of 10 Inch Led Gas Price Sign can be customized according to your needs.


Technical Parameters


Color

LED Q.ty

Light Intensity

Wave Length

Viewing Angle

Power

Working Voltage

Housing Material

L/R

U/D

RED

532pcs


≥2394cd


625±5nm

30°

30°


≤20W


85-265VAC-50/60Hz;


Armor plate cover


YELLOW

532pcs


≥2394cd


525±5nm


30°

30°

≤25W


GREEN

532pcs

≥4256cd

509±5nm

30°

30°

≤25W


Packing List


Part name

Sign

L Bracket

M10x25 Screw

M4x20 Screw

Wiring Box And Gasket

Using Manual

Certificate

Q'ty.(pcs)

2

8

2

4

8

2

2

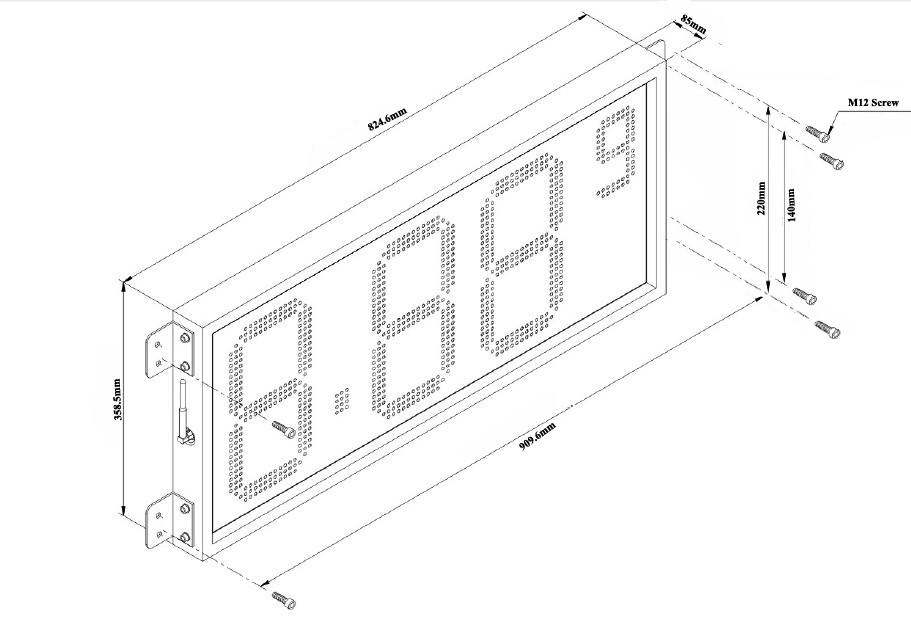

Dimension Figure

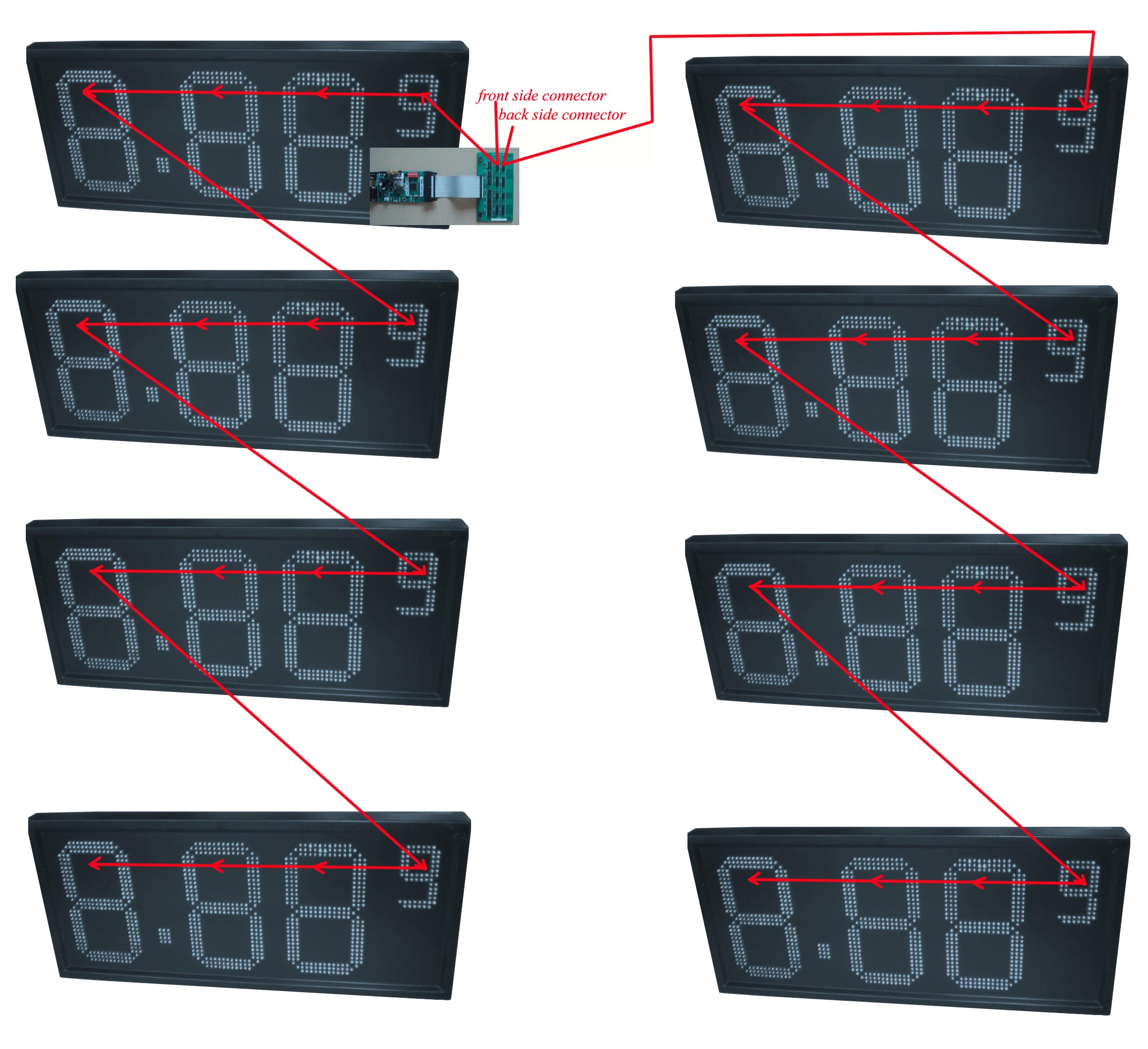

Connection Connection Sketch For Reference

Each Controller can control 4pcs price boards in mostly with double sides,in our hub board,you will find which have two rows of  connectors,one connector for front side and another for back side.Attention as following details:

1. The sign installed controller and hub board is the Chief sign,we will mark “Chief sign” and number in it before delivery , also  in the Chief sign has Antenna in it. So please check carefully before installing.

2. All other signs except Chief sign we call them Secondary signs,we need not difference them,all secondary signs are same  completely.
